The cooling effect of vertical greening systems using solar radiation measurement
Abstract
Vertical greening systems (VGS) can effectively mitigate the urban heat island effect in urban canyons with dense high-rise buildings. This study evaluates the cooling effect of VGS on solar radiation and atmospheric temperature. A thermodynamic analysis was utilized to assess the impact of VGS on outdoor thermal comfort. CNR4 equipment collected data on long-wave and short-wave radiation from Fatsia japonica plants. These data formed the basis for simulation analyses with the Envi-met model, which showed that VGS exhibit significant diurnal surface temperature variations in the urban environment during the summer months. Areas with VGS had higher temperatures than those of high albedo walls (HAW) from 2:00 to 4:00 and recorded lower temperatures than those of HAW between 13:00 and 15:00. VGS absorb short-wave and long-wave radiation better than HAW. The average short-wave radiation of VGS is 43.91 W/h2, compared to 31.50 W/h2 for HAW, while the average long-wave radiation of VGS is 2.82 W/h2, compared to -1.53 W/h2 for HAW. Envi-met simulations indicate that the surface temperature of the VGS decreases after 15:00, to about 0.1°C cooler than HAW. The data from July 15 indicate that VGS significantly outperformed HAW in terms of cooling the maximum temperature at 13:00 and stabilizing the minimum temperature at 3:00. Furthermore, the extent of the cooling effect of the VGS was approximately 1.5 meters. This demonstrates that VGS, as an eco-friendly solution, can improve the urban thermal environment, increase the urban greening rate, and promote ecologically balanced development.
Keywords:
Urban Heat Island, Green Infrastructure, CFD, Energy Balance, Evapotranspiration Effect1. Introduction
The main cause of the urban heat island effect is the increased absorption of solar radiation by the urban surface relative to the surrounding environment (Alsaad et al., 2022). This phenomenon is caused by two factors; high-density urban buildings expand the vertical surface area of the city, and an increase in the number of buildings leads to an increase in urban density and insulation (Kim et al., 2023). Although cities currently cover less than 2% of the earth’s surface, they produce more than 60% of global greenhouse gas emissions and contribute to rising temperatures (The Paper, 2021). With 2.5 billion more people expected to live in urban areas by 2050, greenhouse gas emissions will continue to increase and temperatures will continue to rise if nothing changes.
The city itself is like a giant heat absorber and accumulator (Oliveira and Salles, 2020). The urban heat island effect caused by human activities and public space design will become more significant (Shahmohamadi et al., 2011). However, the city’s current design is insufficient to effectively withstand rising temperatures. With the rapid development of modern industrialized cities, the number of buildings has increased and the amount of land available for greening has decreased (Paudyal et al., 2019). Problems such as air pollution, water pollution, ecological imbalance and heat island effect have seriously affected the quality of life of urban residents and threatened the healthy development of modern cities (Peng et al., 2021).
Vertical greening is an effective measure to mitigate the urban heat island effect (Price et al., 2015). The application of vegetation cover on building exteriors serves to decrease ambient temperatures and reduce energy consumption (Hayes et al., 2022; Saiz et al., 2006), thereby optimizing the utilization of constrained urban spaces and enhancing green coverage.
VGS lower ambient temperatures, improve urban microclimates and reduce the impact of the heat island effect on cities through transpiration, water absorption and wind regulation (Hayes et al., 2022). The ability of vegetation to absorb and reflect solar radiation, especially at midday on sunny days, reduces heat build-up on street and building surfaces, further improving the urban microclimate (Medl et al., 2017). Studies have shown that the valley temperature of urban streets with vertical greening is 0.83°C lower than that of cities without vertical greening, and that large-scale application of vertical greening technology can significantly reduce the cooling load of urban buildings by 5% to 8% and lower urban air temperature by about 0.7 to 0.9°C, which reduces the heat island effect by almost half. In addition, the application of vertical greening technology can effectively reduce summer building energy consumption by 9% to 59%, reducing the amount of heat emitted to the city by air conditioners (Bevilacqua, 2021).
Short-wave radiation from the sun and long-wave radiation emitted by the earth are important factors affecting the thermal processes in plant canopies (Erell et al., 2014), prompting extensive research in this area by many scholars (Alexandri and Jones, 2008; Shafiee et al.,2020; Tan et al.,2014; Zhao et al., 2022). Shafiee, Elham et al investigated the effect of plant walls on ambient air. The results of the study showed that the presence of plant strong reduces the ambient air temperature (Shafiee et al., 2020). The results showed that roof gardens were able to intercept about 90% or more of solar radiation. Additionally, vertical green cover (VCF) was found to absorb and reduce the amount of solar radiation by up to 86% (Chen et al., 2019).
Envi-met contributes to the simulation and mitigation of the urban heat island effect (Cortes et al., 2022). Despite its widespread used to simulate various scenarios in urban environments, it is crucial to strive for a proper understanding and rational use of the software’s parameters (Crank et al., 2018). This is because the software is based on Computational Fluid Dynamics (CFD), and software accuracy in CFD has always been a challenge, with different models, accuracies, and meteorological parameters leading to different results (Shafiee et al., 2020; Yang et al., 2019).
In recent years, addressing the urban heat island effect has become a focal point of research, with the Envi-met software emerging as a prevalent tool for simulations and predictions (Cortes et al., 2022). Without sufficient validation, the use of unreliable parameters can lead to severe theoretical mistakes. In this study, we conducted experimental validation of the thermodynamic aspects of VGS to evaluate outdoor thermal comfort. The greening involved planting Fatsia japonica, and we used a CNR4 measuring device to record short-wave and long-wave radiation, as well as albedo. The Envi-met model was then utilized to validate these measurements and to assess the microclimate effects of vertical greening. The experiments and simulations will provide insights into the role of vertical greening systems in microclimate regulation and offer a reliable scientific basis for improving the urban thermal environment and enhancing outdoor comfort.
2. Material and methods
2.1. The experimental setup
This study was conducted on the roof of Academic Building 38 (coordinates 37.2717, 126.5701) at Seoul National University, Korea. The experiment was divided into two groups, VGS and HAW, to evaluate the performance of VGS in terms of outdoor cooling and thermal insulation. The system in the VGS group consisted of plants and soil, while the other group was a control group with only soil and no plants (Djedjig et al., 2015). This was done to exclude the effect of soil thickness on plant cooling to ensure that the cooling and insulating effects of the VGS were evaluated. In order to compare it with a normal wall, the study also measured parameters such as long-wave radiation, short-wave radiation and temperature of a normal white wall in the same area (Zhang et al., 2019) The VGS has dimensions of 1800 mm×1200 mm and consists of plant modules with dimensions of 300 mm×150 mm arranged in an array of 12×4. These modules are located in front of the wall at a distance of 40 cm (Koch et al., 2020) Each group of VGS consist of two sets of portable green walls, which are designed to place the experiments in the same environment in order to exclude errors caused by factors such as environment and time of day. To minimize the effect of shadows on the experiment, the VGS were oriented towards the north (Fig. 1).
North-facing green facade building at Seoul National University Development Corporation
The vertical drip irrigation technology in this experimental VGS uses wick irrigation technology (Cameron et al., 2014). The principle is that the left and right planting tanks can pass water to each other, the outer basin of each layer of planting tanks can store water, the inner basin stores water up to the height of the drainage column, and the water will flow to the next layer, the water storage space is sealed, and the water does not contact with the wall, so it will not leak or wet the wall. The water in the storage layer is transported to the soil through a cotton rope, the storage system does not touch the soil and keeps the water clear (Fig. 2).
Vertical Green System design with irrigation system
The plant for vertical greening is Fatsia japonica, the reason for choosing this plant is that Fatsia japonica has a large leaf area and is easy to propagate, making it suitable as a potted plant. Another reason is that Fatsia japonica is a tropical plant that is sensitive to light and can adapt to stronger sunlight, making it an ideal plant to withstand strong solar radiation (Carroll and Spengler, 2021). Fatsia japonica is a local native plant that is better adapted to local climatic conditions and is also easy to care for, making it a potential plant for mitigating the heat island in the corresponding city. Therefore, plants with diameters of 25 ~ 40 cm were selected as wall greening plants for this experiment.
2.2. Data collection and equipment
In this experiment, a separate CR1000 data logger (Campbell Scientific, USA) was used to collect data on longwave radiation, shortwave radiation, etc. for comparing the differences in absorption and reflection of long and shortwave radiation among the three experimental groups. To ensure the accuracy of the data, the CNR4 sensor has a measurement height of 1.2 m and a measurement distance of 1 m thermal camera (COX-CG640, Smart Measurement, Korea) with an accuracy of ±2°C and a resolution of 640 by 480 pixels was used from a horizontal position of 2.5 m from the surface in order to measure the surface temperature. To avoid surprises during the experiment, a thermal camera with 24 h video recording was used for automatic real-time data collection. The collected data was converted into image form and surface temperature data was extracted at 1 min intervals. In addition, air temperature and relative humidity (measured using the Onset Hobo S-THB-M002 with an accuracy of ±0.21°C and ±2.5%) and wind speed (measured using the Onset Hobo s-wcf-m003 with an accuracy of ±1.1 m/s) were recorded (Kim et al., 2023). Table 1 (Kim et al., 2023) summarizes information on these data logging devices and associated parameters.
Equipment list and details of each measurement sensor (Kim et al., 2023)
The measurement period was from July 15 to July 17, 2022 (3 days). During this period, the meteorological data in the Seoul area showed an average temperature of 26.6°C, with a maximum temperature during the heat wave of 30°C. The relative humidity averaged 78% and the wind speed was 5.57 m/s. The data were measured at one-minute intervals while maintaining a constant position during the data collection period.
2.3. Measurement solar radiation of VGS for Envi-met simulation
VGS utilize plant coverage on building exteriors, where photosynthesis and transpiration play a role in environment interactions (Su et al., 2024). These processes contribute to the reduction of heat absorption at the building surface, thereby decreasing the temperature of both the structure and its vicinity (Wong et al., 2010). Furthermore, during photosynthesis, plants absorb solar radiation energy and release water vapor into the air through transpiration. The evaporation of this water requires heat absorption, which additionally helps to lower the ambient temperature (Morakinyo et al., 2019). Collectively, these mechanisms enable VGS to mitigate the urban heat island effect and improve the local microclimate.
The law of conservation of energy allows us to analyze the relationship between vertical greening systems in terms of shortwave radiation energy income and energy output. Such a comparison helps to infer how much shortwave energy is absorbed by the VGS in a given time period, i.e., the relationship between the input shortwave radiation and the output thermal radiation. VGS convert shortwave radiation energy through two processes: the absorption of energy from the sun’s shortwave radiation by the plants and the release of heat by the plants as they release water. According to the law of conservation of energy, there is an energy balance relationship between these processes. By comparing the energy changes, it is possible to reveal the degree of absorption of solar radiation by the vertical greening system (Lauster et al., 2014). Because of the full coverage of plant canopy area in this experiment, it is desirable not to consider the canopy coverage.
| (1) |
Plants and vegetative coverings in vertical greening systems can influence the absorption and release of long-wave radiation from building surfaces (Zhao et al., 2022). Plants can reduce longwave radiation at night, which helps to reduce the amount of heat emitted from building surfaces, thus lowering the temperature of the surrounding environment. Plants release water into the surroundings through transpiration, resulting in heat absorption required for water evaporation. This process also helps to reduce the temperature of the surroundings (Zhang et al., 2022). The relationship between longwave radiation and vertical greening systems may be more pronounced at night or under low radiation conditions. Although the effect of longwave radiation on vertical greening systems may not be as significant as that of shortwave radiation, longwave radiation is still involved to some extent in the regulation and influence of vertical greening systems on the temperature of the surrounding environment.
| (2) |
2.4. Envi-met simulation
Envi-met is a three-dimensional numerical model for simulating urban microclimate, which simulates parameters such as temperature, humidity, wind speed and radiation in the atmospheric boundary layer (Ng et al., 2012). The model uses measurement data from 38 rooftops on the Seoul National University campus and records data such as air temperature, global radiation temperature, relative humidity, and wind speed at the same locations on three different dates. Based on these data, Envi-met created a geometric model of the campus rooftops, considering the effects of three-dimensional greening and zoning.
However, the software has some shortcomings that prevent it from accurately modeling an ordinary earth wall without greening. Therefore, the researchers set the greening value of the earth wall without greening to a minimum value. The greened and ungreened areas (VGS and HAW) were compared by adjusting the greening setting to the minimum value (about 1 cm) and the VGS setting to 30 cm for the greened portion (Fig. 3 ~ Fig. 5). Next, a simulation was conducted using the weather data of the day, with the main objective of verifying the cooling effect of these three different scenarios.
Vertical green system for Envi-met simulation
Envi-met simulated building plans and renderings
Envi-met parameter table July 15
The scholarly assessment of surface temperature projections for VGS and HAW enables researchers to discern the influence of micro-scale urban features, including buildings, roadways, and vegetation, on the spatial distribution of air temperatures (Ali-Toudert et al., 2007). Such a thermodynamic investigation elucidates the role of urban greening initiatives in microclimate modification and furnishes empirical insights instrumental for urban environmental enhancement.
3. Results and discussion
3.1. VGS and HAW Surface temperature
In this experiment, the surface temperatures of both the vegetated VGS and HAW were quantified based on the collected data. The analysis of the overall trends indicates that the surface temperature fluctuations of both the VGS and HAW correspond with changes in ambient air temperature. However, the variation in surface temperature of HAW more closely aligns with that of the ambient temperature, whereas the range of temperature changes observed in VGS is more pronounced. For instance, observations from July 15 indicate that surface temperatures for both VGS and HAW commenced their ascent from 6:00. By 9:00 temperatures at the surfaces of both systems stabilized at 30°C. Subsequently, VGS temperatures remained above those of HAW until 14:00, at which point both systems recorded equal temperatures of 35°C. Thereafter, temperatures on the vegetated surfaces of VGS fell below those of HAW (Fig. 6).
Surface temperature for one day
HAWs are constructed using materials characterized by high reflectivity, which enhances their capability to reflect solar radiation and thereby minimize thermal gain (Nasir and Hassan, 2020). This reflective quality enables the surface temperature of HAWs to closely align with fluctuations in ambient air temperatures. In contrast, VGS typically includes multiple layers of soil, moisture, and vegetation, which have higher thermal mass and insulation. This allows VGS to absorb and retain heat for longer periods, resulting in a wider range of temperature fluctuations (Pan and Chu, 2016).
3.2. Comparison of shortwave radiation output of three groups of experiments
This experiment uses empirical data to perform a comparative analysis of short-wave radiation absorption by VGS, non-vegetated surfaces, and HAW. Although the three surface types show analogous diurnal trends, distinct disparities in short-wave radiation absorption were evident (Fig. 7). Examination through the principles of energy conservation and data analysis yielded the following insights: The short-wave radiation absorption of the assessed surfaces exhibits substantial temporal variation. During the daytime, radiation absorption increases corresponding with peak solar radiation, whereas nocturnal intervals are characterized by a minimization of absorption due to the absence of solar input. Comparative assessments reveal that vegetated VGS (represented by the green line) and non-vegetated surfaces (denoted by the orange line) exhibit more pronounced short-wave radiation absorption than HAW (indicated by the yellow line). The mean absorption values are 54.47 W/m2 for non-vegetated surfaces, 43.91 W/m2 for VGS, and 31.50 W/m2 for HAW. This difference is likely attributable to the greater thermal mass and diminished reflectivity of non-vegetated substrates (Pianella et al., 2017). Notably, absorption peaks coincide with solar zenith, typically occurring around noon. The peak value of HAW is much lower than that of the other evaluated surfaces, reflecting its higher reflectivity and reduced tendency to absorb short-wave radiation (Marino et al., 2017).

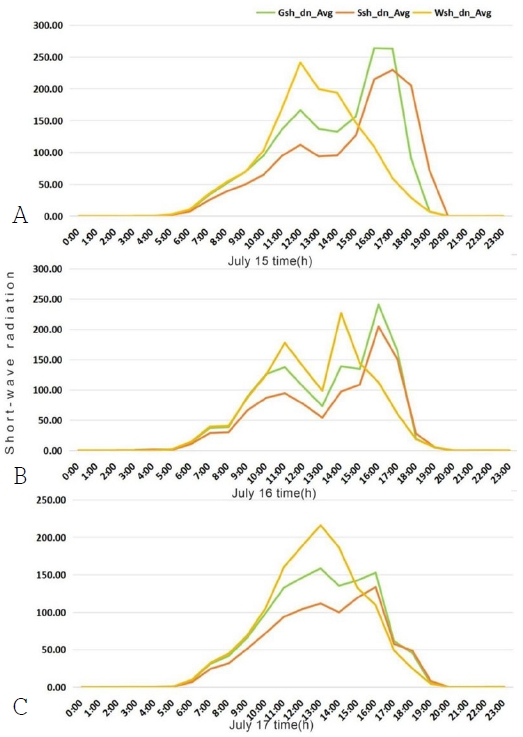

A, B, C three groups of experimental shortwave radiation (Gsh_dn_Avg represents the average output of shortwave radiation from a vertical greening system with plants, Ssh_dn_Avg represents the average output of shortwave radiation from a vertical greening system without plants, and Wsh_dn_Avg represents the output of shortwave radiation from a High Albedo wall).
3.3. Comparison of longwave radiation output of three groups of experiments
In the experiment shown in Fig. 8, we compared the absorption of long-wave radiation by a VGS, a surface without vertical greening, and a HAW. The absorption of long-wave radiation increases with the rise in solar radiation after sunrise, and decreases as the intensity of solar radiation weakens, exhibiting diurnal variation characteristics consistent with the solar radiation cycle. Specifically, the VGS surface has the highest long-wave radiation absorption capacity, with an average absorption of 2.82 W/m2, followed by the non-vegetated surface with 2.72 W/m2, while the HAW surface has the weakest absorption capacity with -1.53 W/m2. This difference in absorption capacity may be due to the HAW’s highly reflective material, which reflects more long-wave radiation. In addition, the vegetation layer of VGS releases water through transpiration, and absorbs heat when water evaporates, which naturally reduces the absorption of long-wave radiation. This process manifests as a higher radiation absorption peak and a rapid temperature drop (Brar et al., 2015). Simultaneously, the shading effect of plants reduces direct solar radiation, affecting the process of heat absorption and release (Yang et al., 2021). Therefore, plant coverage is a key factor in regulating the absorption of long-wave radiation on the VGS surface and affecting the microclimate, providing an additional temperature regulation mechanism compared with surfaces without vegetation (Zhao et al., 2022).

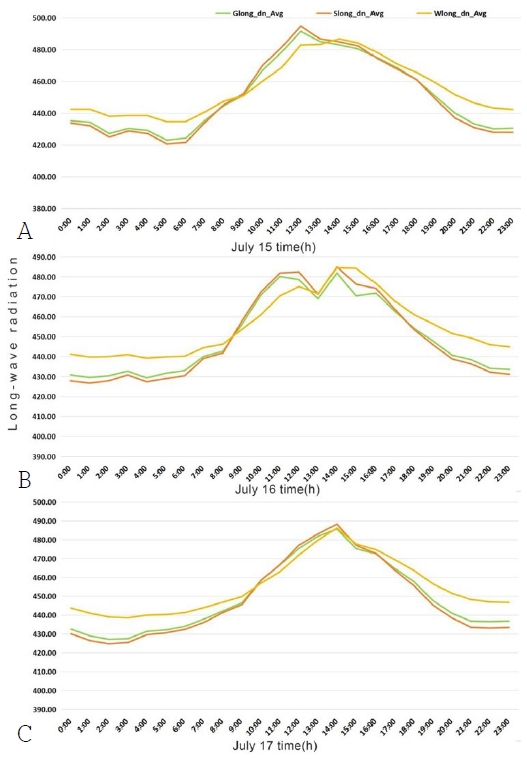

A, B, C three groups of experimental longwave radiation (Gsh_dn_Avg represents the average output of longwave radiation from a vertical greening system with plants, Ssh_dn_Avg represents the average output of longwave radiation from a vertical greening system without plants, and Wsh_dn_Avg represents the output of longwave radiation from a High Albedo wall).
3.4. Envi-met potential air temperature
This simulation uses the measured data from July 15 to 17 for Envi-met simulation, and the results are consistent with the experimental data. The simulation results are shown in Analysis Table 2, where the value “green” indicates that the surface temperature of VGS is higher than HAW, the value “gray” indicates that the surface temperatures of the two systems are equal, and the value “orange” indicates that the surface temperature of VGS is lower than HAW. The overall trend shows that the surface temperature of VGS is higher than HAW in most time periods, especially from July 15 to 17, when VGS continued to show a higher temperature from 4:00 to 12:00. This phenomenon may be related to the presence of plants in VGS, and the cooling effect of plants through transpiration and shading is more obvious during the day. However, at night or during periods of weak solar radiation (i.e., 1:00, 2:00, and 14:00 to 24:00), the temperature of VGS is lower than or equal to the temperature of HAW, reflecting the slower heat release characteristics of VGS. In addition, the temperatures of VGS and HAW were equal at 2:00 on July 16 and between 13:00 and 14:00 on July 17, which may indicate that the two systems have similar thermal response dynamics under certain conditions. During the night and from 15:00 to 24:00 when solar radiation is low, the VGS surface temperature is always lower than the HAW surface temperature, further emphasizing the potential effectiveness of VGS in cooling.
Comparison of temperature results for ENVI-met VGS and HAWs
On July 15, changes in the surface temperatures of VGS and HAW were observed. At 4:00, the HAW surface temperature was approximately 0.06°C lower than the VGS, with the range of 24.97 ~ 25.00°C for HAW and 25.00 ~ 25.03°C for VGS (Fig. 9a). By around 13:00, the temperatures at the HAW and VGS surfaces were essentially equal (Fig. 9b). However, at about 14:00, the temperature of the HAW surface began to gradually increase and eventually exceeded that of the VGS surface, with temperature intervals of 26.50 ~ 26.57°C for HAW and 26.57 ~ 26.65°C for VGS (Fig. 9c). As a result, the temperature difference between the two gradually increases.
A, B and C show the potential air temperatures at 04:00, 13:00, and 14:00 on July 15, respectively
The potential air temperatures on July 16 and 17 showed similar trends to those on July 15, with HAW temperatures higher than VGS temperatures in the morning, and by 13:00-14:00 the same temperatures of both systems were the same, followed by HAW temperatures higher than VGS at 15:00.
3.5. Envi-met Comparison of maximum and minimum temperatures for one day
By comparing the potential air temperatures of the maximum and minimum air temperatures within the same day, the effect of greening on the distribution of air temperatures and the shading effect of the building can be analyzed. By observing the results on July 15, it was shown that the presence or absence of vertical greening on the buildings may have a cooling effect, but the effect was not significant (Fig. 10), only the extent of cooling changed, with the area of influence of VGS being larger than the area of influence of HAW, with an area distance of about 1.5 maters.
Comparison of maximum and minimum temperatures for July 15 (3:00 and 15:00)
While earlier studies have made significant contributions to understanding the impact of VGS on urban heat island effects, they often focused on specific aspects like short-wave or long-wave radiation absorption (Lee and Jim, 2019; Zhao et al., 2022). In contrast, this research takes a more holistic approach by integrating both short-wave and long-wave radiation analyses. This comprehensive perspective offers a deeper and more nuanced understanding of VGS performance across different times of the day.
Furthermore, prior research, though valuable, often did not fully account for the detailed thermodynamic properties and diurnal variations (Zhang et al., 2019). Specifically, during the early morning hours (2:00 to 4:00), VGS tend to have higher temperatures compared to HAW because the vegetation retains heat accumulated during the day. This heat retention results from the thermal mass of the vegetation and soil, which release heat more slowly than the reflective surfaces of HAW. In contrast, from 13:00 to 15:00, VGS exhibit lower temperatures than HAW due to their ability to absorb and dissipate solar radiation more efficiently. The plants in VGS provide shading and undergo transpiration, a process where water is evaporated from plant leaves, absorbing heat and cooling the surrounding air. This dual mechanism of shading and transpiration significantly enhances the cooling effect of VGS during the hottest part of the day, making them more effective than HAW in reducing surface and ambient temperatures.
ENVI-met has been widely used to simulate and mitigate the urban heat island effect (Cortes et al., 2022). Despite its widespread use, it is crucial to strive for a proper understanding and rational use of the software’s parameters (Crank et al., 2018). One of the main limitations of previous ENVI-met studies is the challenge in achieving accurate CFD model outputs due to varying model accuracies and meteorological parameters (Shafiee et al., 2020; Yang et al., 2019).
This research advances the existing knowledge by conducting experimental validation of the thermodynamic aspects of VGS, which ensures that the ENVI-met simulations are grounded in empirical data. By incorporating detailed measurements of long-wave and short-wave radiation, as well as temperature variations, our study provides a more reliable assessment of VGS’s cooling effects and their impact on outdoor thermal comfort. This approach addresses the gaps in previous studies, which often relied on theoretical simulations without sufficient experimental validation.
The extent of the cooling effect of VGS is also noteworthy. ENVI-met simulations indicate that the surface temperature of VGS decreases after 15:00, being about 0.1°C cooler than HAW. The data from July 15 indicate that VGS significantly outperformed HAW in terms of cooling the maximum temperature at 13:00 and stabilizing the minimum temperature at 3:00. Furthermore, the cooling effect of VGS extends to approximately 1.5 meters, which is a clear advantage over HAW.
This research not only underscores the effectiveness of VGS in urban heat island mitigation but also highlights their potential for improving urban thermal environments and enhancing outdoor comfort. The findings support the continued research and development of VGS as an eco-friendly solution for urban cooling.
4. Conclusion
This investigation employs both empirical measurements and Envi-met simulations to ascertain the outdoor cooling efficacy of VGS. The findings indicate that the diurnal temperature trajectories of VGS and HAW display congruent patterns, yet manifest divergent specific temperatures. During the morning and afternoon intervals, the surface temperatures of HAW consistently surpass those of VGS; conversely, at midday, temperatures of VGS occasionally exceed those recorded for HAW. Regarding radiative absorption, VGS demonstrates superior capability in both long-wave and short-wave radiation absorption compared to HAW. While simulation outcomes corroborate the observed temperature trends, there is a notable discrepancy between the simulated surface temperatures and the actual measurements. The results affirm the potential of VGS in mitigating surface temperatures, particularly through enhanced absorption of both short-wave and long-wave radiation, thereby outperforming HAW. These outcomes provide robust empirical support for continued research into, and refinement of, VGS design and applications.
